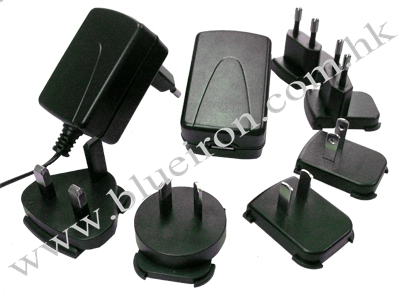

10W Series Interchangeable Power Supply | |
Input : | 100-240VAC, 50-60Hz |
Output : | 3.0-24.0VDC |
Output Power (max.) : |
12W |
Safety Approval : | UL/cUL/FCC/CE/CB/GS/PSE/cTUVus |
Efficiency Level | CEC Level IV/V;Erp Stage I / II ; MEPS |
Product Name | 10W Series Interchangeable Power Supply |
Model Number | BI10-XXXYYY-I |
Input Voltage(VAC) | 100-240 |
Input AC Plug | US/EU/UK/AU/Japan/korea/China |
Frequency Range(Hz) | 50/60 |
Output Power(W) | 12W (max) |
Output Voltage Range(VDC) | 3.0-24.0 |
Output Current(A) | 0.1-2.2 |
Over Current Protection | Yes |
Over-load Protection | Yes |
Short Circuit Protection | Yes |
Ripple/Noise(mV) | 10 times of rated output voltage (max) |
Operating Temperature (℃) | 0 to 40 |
Storage Temperature(℃) | -20 to +60 |
Environmental Protection Standards | RoHS, REACH, WEEE,HR4040 |
M.T.B.F(hrs) | 60,000 |
EMC Standards | FCC PART 15 CLASS B,EN55022/EN61000-3-2/3 |
OEM Service | Yes |
